Cut the carbon, not the convenience. Go green with our smart card!

Visible RFID Label for Factories and Logistics Warehouses.

Elevate your experience to a whole new level with our smart card!

Battery-free and semi-permanent usage.

The Final Piece in Automated Efficiency - Our Smart Card Delivers!

Can be rewritten in 1 second using NFC/HF, making it compatible with conveyors.

What You Can Do With Smart Card

SC1029L-ST1129L-ST1129U-04

Precision Crafted in Japan

Beyond 3R

Beyond DX

A green cloud with the word co 2 in it.

REDUCE

Zero paper waste= Zero CO2 emissions.

01

Integration with conveyors

Ideal for integration with conveyors and other material handling equipment or robotics due to its capability of responding to high-speed rewriting (1 second).

A green image of the recycling symbol with trees in it.

REUSE

Can be used repeatedly.

02

Labor saving

Definitely faster than applying labels by hand. Since it requires no consumables, there is zero expenditure or labor time spent on loading new rolls of labels onto a machine.

A green circle with arrows in it.

RECYCLE

Rewritable over 1 million times without using battery.

A computer monitor and some servers connected to the same rack.

DX

Enables centralized management of information, which contributes to improved information sharing and visualization.

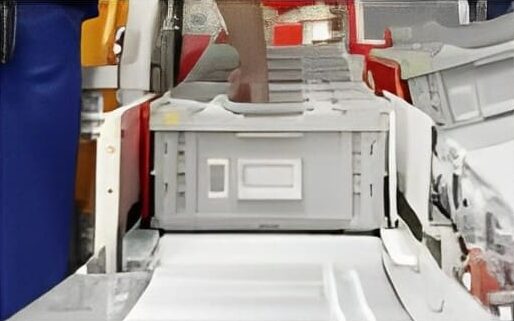

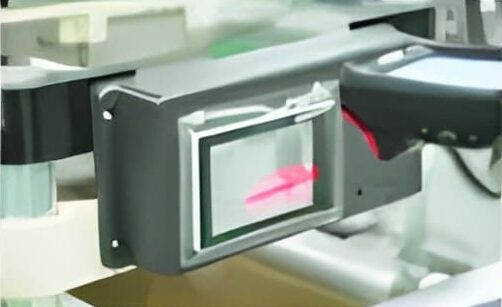

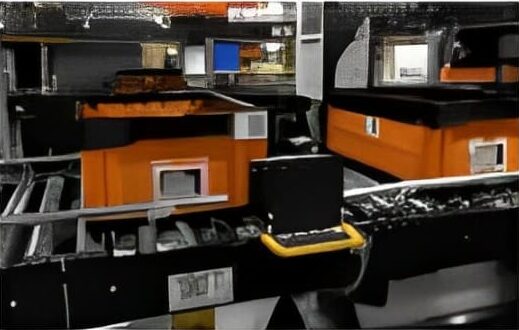

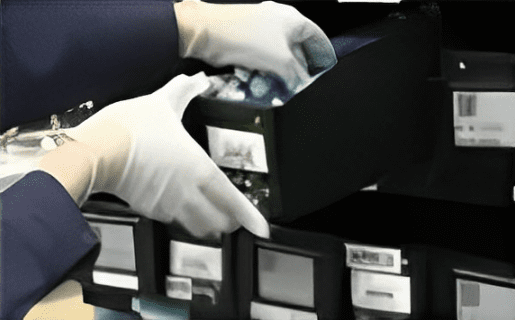

Success Cases

Embark on a journey through the success stories across diverse industries:

Visible RFID Smart Card

A card that uses electronic paper and can be viewed just like regular paper. By leveraging the advantages of RFID, you can achieve digital transformation (DX) with solutions customized for the site, while also taking environmental measures. It is versatile and used in various situations, such as work instructions (kanban), inspection sheets, process control cards, item tags, returnable box labels, etc.

image (8)

Smart Card Structure

A dual-interface RFID (NFC & UHF chip) that works with AIOI’s specially designed antenna. Additionally, the electronic paper display makes it a "Visible RFID".

Product Lineups

Smart Card using electronic paper technology can display information, including barcodes and QR codes allows for rewriting via NFC making it versatile for various applications. Additionally, it supports ID reading through a UHF (Ultra-High Frequency) reader (for U-type cards only).

External Dimensions

85.6 mm x 54.0mm x 3.65mm

Display 2.9-inch Flexible ePaper
Display Area 61.5mm x 41.0mm
Pixel 300 x 200 123dpi
Electric Power Wireless Charging (Battery not required)
Data Memory (byte) Card Memory (FeRAM) 944 User Memory (FeRAM) 1,024 User Memory (Flash) 16,384
Communication (NFC) ISO/IEC 18092, JISX6319-4 compliant
Communication (UHF) -
NFC Communication Distance (mm) USB Desktop Reader: 10 AIOI SC2101 Reader: 30
UHF Communication Distance -
Display Rewritable Times More than 1 million times
Operating Temperature/Humidity 0℃ to 50℃ / 0% to 80% (Non condensing)
ePaper Display Speed (s) 1.5 (40℃ or higher) 2.0 (16-39℃) 3.2 (6-15℃) 5.6 (0-5℃)
ePaper Refresh Display Speed (s) Same as above
Full Screen Transfer Display (s) *USB Reader, Room Temperature 4.8 (2.8 +2.0) (Including image data transmission)
Display Specified String on ePaper Display (s) *USB Reader, Room Temperature N/A
Dustproof/Waterproof Level IP56
Net Weight About 20g
External Dimensions

93.0mm x 57.0mm x 8.0mm

Display 2.9-inch Glass ePaper
Display Area 66.9mm x 29.06mm
Pixel 296 x 128 112dpi
Electric Power Wireless Charging (Battery not required)
Data Memory (byte) Card Memory (FeRAM) 944 User Memory (Flash) 16,384
Communication (NFC) ISO/IEC 18092, JISX6319-4 compliant
Communication (UHF) -
NFC Communication Distance (mm) USB Desktop Reader: 10 AIOI SC2101 Reader: 30
UHF Communication Distance -
Display Rewritable Times More than 1 million times
Operating Temperature/Humidity 0℃ to 50℃ / 0% to 80% (Non condensing)
ePaper Display Speed (s) 0. 5 (8℃ or higher) 1.0 (0-7℃) 1.5 (-1℃ or lower)
ePaper Refresh Display Speed (s) 0.98 (8℃ or higher) 2.4 (0-7℃) 3.2 (-1℃ or lower)
Full Screen Transfer Display (s) *USB Reader, Room Temperature about 2.6 (2.02 + 0.5) (Including image data transmission)
Display Specified String on ePaper Display (s) *USB Reader, Room Temperature about 1.6 (1.02 + 0.5) (Including character data transmission)
Dustproof/Waterproof Level IP55
Net Weight About 40g
External Dimensions

99.0mm x 63.0mm x 8.0mm

Display 2.9-inch Glass ePaper
Display Area 66.9mm x 29.06mm
Pixel 296 x 128 112dpi
Electric Power Wireless Charging (Battery not required)
Data Memory (byte) Card Memory (FeRAM) 944 User Memory (FeRAM) 1,024 User Memory (Flash) 16,384
Communication (NFC) ISO/IEC 18092, JISX6319-4 compliant
Communication (UHF) ISO/IEC 18000-63 (EPC Global Class 1)
NFC Communication Distance (mm) USB Desktop Reader: 10 AIOI SC2101 Reader: 30
UHF Communication Distance Maximum Reading Distance: 1.5m (When using 1W R/W)
Display Rewritable Times More than 1 million times
Operating Temperature/Humidity 0℃ to 50℃ / 0% to 80% (Non condensing)
ePaper Display Speed (s) 0.98 (8℃ or higher) 2.4 (0-7℃) 3.2 (-1℃ or lower)
ePaper Refresh Display Speed (s) Same as above
Full Screen Transfer Display (s) *USB Reader, Room Temperature 3.0 (2.02 +0.98) (Including image data transmission)
Display Specified String on ePaper Display (s) *USB Reader, Room Temperature 2.0 (1.02 +0.98) (Including character data transmission)
Dustproof/Waterproof Level IP55
Net Weight About 48g

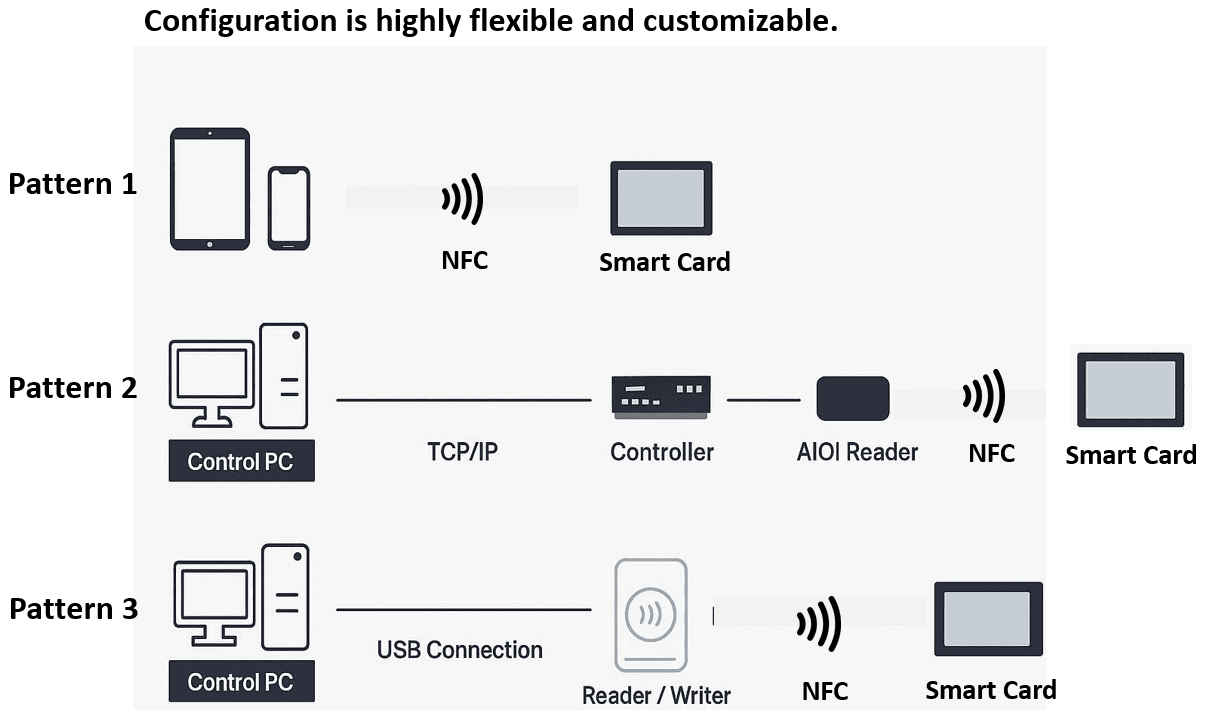

System Configuration

Smart Card can connect to various devices, and since it is NFC-compatible, rewriting is possible even with a smartphone.

Starter Kit for Smart Cards

Perfect for Immediate Use and POC. This kit includes a set of sample programs and provides all the necessary components in one package, saving you the hassle of purchasing them separately.

Starter Kit for Smart Cards includes:

One of each 3 types of RFID Smart Card

1 CD with Sample software

1 NFC Reader/Writer

Price: $250

Starter-Kit

Reaching for Net Zero Emissions with Smart Cards

AIOI helps drive an impact on climate action. Data indicates that a significant reduction in CO2 emissions is expected when compared to single-use paper labels. For instance, when consuming 1 million labels, the CO2 emissions comparison is as follows: Paper label: 3500kg Smart Card: 300g
